Artificial Intelligence



Chapter 1

                                                                                                                     ( Source: Google)

Intelligence

What is “Intelligence”?

-- Intelligence is the ability of machines to perform human-like tasks

-- Everyone agrees that humans and dogs are intelligent, trees are not

What is AI?

Artificial intelligence (AI) is the simulation of human intelligence processes by machines, especially computer systems

Acting humanly: Turing Test

•Turing Test

-- Proposed by Alan Turing in 1950

-- Designed to provide a satisfactory operational definition of intelligence

-- A computer passes the test if a human interrogator, after posing some written questions, cannot tell whether the written responses come from a person or from a computer

-- No physical interaction between the interrogator and the computer

Criticism:

Aeronautical engineering texts do not define the goal of their field as making “machines that fly so exactly like pigeons that they can fool even other pigeons.

Thinking humanly: Cognitive Modeling

•If we are going to say that a given program thinks like a human, we must have some way of determining how humans think.

–We need to get inside the actual workings of human minds.

Three ways to do this:

1.Through introspection—trying to catch our own thoughts as they go by.

2.Through psychological experiments—observing a person in action.

3.Through brain imaging—observing the brain in action.

Example:

The “General Problem Solver” (Newell and Simon, 1961) is not content merely to solve problems correctly. It is more concerned with comparing the trace of its reasoning steps to traces of human subjects solving the same problems.

Thinking rationally: “laws of thought”

•Laws of thought: Patterns for argument structures that always yielded correct conclusions when given correct premises.

–Supposed to govern the operation of the mind

–Initiated the field called logic

Logicians in the 19th century developed a precise notation for statements about all kinds of objects in the world and the relations among them.

By 1965, programs existed that could, in principle, solve any solvable problem described in logical notation (if no solution exists, the program might loop forever).

Obstacles:

1.Not easy to state informal/uncertain knowledge in the formal terms.

2.Solving a problem “in principle” does not imply it can be solved in practice.

Acting rationally: Rational Agent

A rational agent is one that acts so as to achieve the best outcome or, when there is uncertainty, the best expected outcome.

Acting rationally is to reason logically (as in “laws of thought” approach to AI) and then act.

But in some situations, there is no provably correct thing to do, but something must still be done.

There are also ways of acting rationally that cannot be said to involve inference (i.e. deliberation).

–Example: reflex actions.

Applications of AI

AI has been dominant in various fields such as



    Gaming: AI plays crucial role in strategic games such as chess, poker, tic-tac-toe, etc., where machine can think of large number of possible positions based on heuristic knowledge.



    Natural Language Processing:  It is possible to interact with the computer that understands natural language spoken by humans.



    Expert Systems: There are some applications which integrate machine, software, and special information to impart reasoning and advising. They provide explanation and advice to the users.



    Vision Systems: These systems understand, interpret, and comprehend visual input on the computer. For example,



        A spying aero plane takes photographs, which are used to figure out spatial information or map of the areas.



        Doctors use clinical expert system to diagnose the patient.

Police use computer software that can recognize the face of criminal with the stored portrait made by forensic artist.



    Speech Recognition:  Some intelligent systems are capable of hearing and comprehending the language in terms of sentences and their meanings while a human talks to it. It can handle different accents, slang words, noise in the background, change in human’s noise due to cold, etc.



    Handwriting Recognition: The handwriting recognition software reads the text written on paper by a pen or on screen by a stylus. It can recognize the shapes of the letters and convert it into editable text.



    Intelligent Robots: Robots are able to perform the tasks given by a human. They have sensors to detect physical data from the real world such as light, heat, temperature, movement, sound, bump, and pressure. They have efficient processors, multiple sensors and huge memory, to exhibit intelligence.

 In addition, they are capable of learning from their mistakes and they can adapt to the new environment.

 HISTORY OF AI

1950: Claude Shannon, “the father of information theory,” published “Programming a Computer for Playing Chess,” which was the first article to discuss the development of a chess-playing computer program.



1950: Alan Turing published “Computing Machinery and Intelligence,” which proposed the idea of The Imitation Game – a question that considered if machines can think. This proposal later became The Turing Test, which measured machine (artificial) intelligence. Turing’s development tested a machine’s ability to think as a human would. The Turing Test became an important component in the philosophy of artificial intelligence, which discusses intelligence, consciousness, and ability in machines.



1952: Arthur Samuel, a computer scientist, developed a checkers-playing computer program – the first to independently learn how to play a game.



1955: John McCarthy and a team of men created a proposal for a workshop on “artificial intelligence.” In 1956 when the workshop took place, the official birth of the word was attributed to McCarthy.



1955: Allen Newell (researcher), Herbert Simon (economist), and Cliff Shaw (programmer) co-authored Logic Theorist, the first artificial intelligence computer program.



1958: McCarthy developed Lisp, the most popular and still favored programming language for artificial intelligence research.



1959: Samuel coined the term “machine learning” when speaking about programming a computer to play a game of chess better than the human who wrote its program.



AI in the 1960s

Innovation in the field of artificial intelligence grew rapidly through the 1960s. The creation of new programming languages, robots and automatons, research studies, and films that depicted artificially intelligent beings increased in popularity. This heavily highlighted the importance of AI in the second half of the 20th century.



1961: Unimate an industrial robot invented by George Devol in the 1950s, became the first to work on a General Motors assembly line in New Jersey. Its responsibilities included transporting die castings from the assembly line and welding the parts on to cars – a task deemed dangerous for humans.



1961: James Slagle, computer scientist and professor, developed SAINT (Symbolic Automatic INTegrator), a heuristic problem-solving program whose focus was symbolic integration in freshman calculus.



1964: Daniel Bobrow, computer scientist, created STUDENT, an early AI program written in Lisp that solved algebra word problems. STUDENT is cited as an early milestone of AI natural language processing.



1965: Joseph Weizenbaum, computer scientist and professor, developed ELIZA an internet program  that could functionally converse in English with a person. Weizenbaum’s goal was to demonstrate how communication between an artificially intelligent mind versus a human mind was “superficial,” but discovered many people attributed anthropomorphic characteristics to ELIZA.



1966: Shakey the Robot, developed by Charles Rosen with the help of 11 others, was the first general-purpose mobile robot, also known as the “first electronic person.”



1968: The sci-fi film 2001: A Space Odyssey, directed by Stanley Kubrick, is released. It features HAL (Heuristically programmed ALgorithmic computer), a sentient computer. HAL controls the spacecraft’s systems and interacts with the ship’s crew, conversing with them as if HAL were human until a malfunction changes HAL’s interactions in a negative manner.

1968: Terry Winograd, professor of computer science, created SHRDLU, an early natural language computer program.



AI in the 1970s:

Like the 1960s, the 1970s gave way to accelerated advancements, particularly focusing on robots and automatons. However, artificial intelligence in the 1970s faced challenges, such as reduced government support for AI research.



1970: WABOT-1, the first anthropomorphic robot, was built in Japan at Waseda University. Its features included moveable limbs, ability to see, and ability to converse.

1973: James Lighthill, applied mathematician, reported the state of artificial intelligence research to the British Science Council, stating: “in no part of the field have discoveries made so far produced the major impact that was then promised,” which led to significantly reduced support in AI research via the British government.



1977: Director George Lucas’ film Star Wars is released. The film features C-3PO, a humanoid robot who is designed as a protocol droid and is “fluent in more than seven million forms of communication.” As a companion to C-3PO, the film also features R2-D2 – a small, astromech droid who is incapable of human speech (the inverse of C-3PO); instead, R2-D2 communicates with electronic beeps. Its functions include small repairs and co-piloting starfighters.

1979: The Stanford Cart, a remote controlled, tv-equipped mobile robot was created by then- mechanical engineering grad student James L. Adams in 1961. In 1979, a “slider,” or mechanical swivel that moved the TV camera from side-to-side, was added by Hans Moravec, then-PhD student. The cart successfully crossed a chair-filled room without human interference in approximately five hours, making it one of the earliest examples of an autonomous vehicle.



AI in the 1980s

The rapid growth of artificial intelligence continued through the 1980s. Despite advancements and excitement behind AI, caution surrounded an inevitable “AI Winter,” a period of reduced funding and interest in artificial intelligence.



1980: WABOT-2 was built at Waseda University. This inception of the WABOT allowed the humanoid to communicate with people as well as read musical scores and play music on an electronic organ.

1981: The Japanese Ministry of International Trade and Industry allocated $850 million to the Fifth Generation Computer project, whose goal was to develop computers that could converse, translate languages, interpret pictures, and express humanlike reasoning.

1984: The film ­Electric Dreams, directed by Steve Barron, is released. The plot revolves around a love triangle between a man, woman, and a sentient personal computer called “Edgar.”



984: At the Association for the Advancement of Artificial Intelligence (AAAI), Roger Schank (AI theorist) and Marvin Minsky (cognitive scientist) warn of the AI winter, the first instance where interest and funding for artificial intelligence research would decrease. Their warning came true within three years’ time.



1986: Mercedes-Benz built and released a driverless van equipped with cameras and sensors under the direction of Ernst Dickmanns. It was able to drive up to 55 mph on a road with no other obstacles nor human drivers.



1988: Computer scientist and philosopher Judea Pearl published “Probabilistic Reasoning in Intelligent Systems.” Pearl is also credited with inventing Bayesian networks, a “probabilistic graphical model” that represents sets of variables and their dependencies via directed acyclic graph (DAG).

AI in the 1990s



The end of the millennium was on the horizon, but this anticipation only helped artificial intelligence in its continued stages of growth.



1995: Computer scientist Richard Wallace developed the chatbot A.L.I.C.E (Artificial Linguistic Internet Computer Entity), inspired by Weizenbaum's ELIZA. What differentiated A.L.I.C.E. from ELIZA was the addition of natural language sample data collection.



1997: Computer scientists Sepp Hochreiter and Jürgen Schmidhuber developed Long Short-Term Memory (LSTM), a type of a recurrent neural network (RNN) architecture used for handwriting and speech recognition.

1997: Deep Blue, a chess-playing computer developed by IBM became the first system to win a chess game and match against a reigning world champion.



1998: Dave Hampton and Caleb Chung invented Furby, the first “pet” toy robot for children.



1999: In line with Furby, Sony introduced AIBO (Artificial Intelligence RoBOt), a $2,000 robotic pet dog crafted to “learn” by interacting with its environment, owners, and other AIBOs. Its features included the ability to understand and respond to 100+ voice commands and communicate with its human owner.



AI from 2000-2010

The new millennium was underway – and after the fears of Y2K died down – AI continued trending upward. As expected, more artificially intelligent beings were created as well as creative media (film, specifically) about the concept of artificial intelligence and where it might be headed.



2000: The Y2K problem, also known as the year 2000 problem, was a class of computer bugs related to the formatting and storage of electronic calendar data beginning on 01/01/2000. Given that all internet software and programs had been created in the 1900s, some systems would have trouble adapting to the new year format of 2000 (and beyond). Previously, these automated systems only had to change the final two digits of the year; now, all four digits had to be switched over – a challenge for technology and those who used it.



2000: Professor Cynthia Breazeal developed Kismet, a robot that could recognize and simulate emotions with its face. It was structured like a human face with eyes, lips, eyelids, and eyebrows.



2000: Honda releases ASIMO, an artificially intelligent humanoid robot.



2001: Sci-fi film A.I. Artificial Intelligence, directed by Steven Spielberg, is released. The movie is set in a futuristic, dystopian society and follows David, an advanced humanoid child that is programmed with anthropomorphic feelings, including the ability to love.

2002: i-Robot released Roomba, an autonomous robot vacuum that cleans while avoiding obstacles.



2004: NASA's robotic exploration rovers Spirit and opportunity to navigate Mars’ surface without human intervention.



2004: Sci-fi film I, Robot, directed by Alex Proyas, is released. Set in the year 2035, humanoid robots serve humankind while one individual is vehemently anti-robot, given the outcome of a personal tragedy (determined by a robot.)



2006: Oren Etzioni (computer science professor), Michele Banko, and Michael Cafarella (computer scientists), coined the term “machine reading,” defining it as unsupervised autonomous understanding of text.



2007: Computer science professor Fei Fei Li and colleagues assembled ImageNet, a database of annotated images whose purpose is to aid in object recognition software research.

2009: Google secretly developed a driverless car. By 2014, it passed Nevada’s self-driving test.

AI 2010 to present day

The current decade has been immensely important for AI innovation. From 2010 onward, artificial intelligence has become embedded in our day-to-day existence. We use smartphones that have voice assistants and computers that have “intelligence” functions most of us take for granted. AI is no longer a pipe dream and hasn’t been for some time.



2010: ImageNet launched the ImageNet Large Scale Visual Recognition Challenge (ILSVRC), their annual AI object recognition competition.



2010: Microsoft launched Kinect for Xbox 360, the first gaming device that tracked human body movement using a 3D camera and infrared detection.



2011: Watson, a natural language question answering computer created by IBM, defeated two former Jeopardy! champions, Ken Jennings and Brad Rutter, in a televised game.

2011: Apple released Siri, a virtual assistant on Apple iOS operating systems. Siri uses a natural-language user interface to infer, observe, answer, and recommend things to its human user. It adapts to voice commands and projects an “individualized experience” per user.

2012: Jeff Dean and Andrew Ng (Google researchers) trained a large neural network of 16,000 processors to recognize images of cats (despite giving no background information) by showing it 10 million unlabeled images from YouTube videos.



2013: A research team from Carnegie Mellon University released Never Ending Image Learner (NEIL), a semantic machine learning system that could compare and analyze image relationships.



2014: Microsoft released Cortana, their version of a virtual assistant similar to Siri on iOS.

2014: Amazon created Amazon Alexa, a home assistant that developed into smart speakers that function as personal assistants.



2015: Elon Musk, Stephen Hawking, and Steve Wozniak among 3,000 others signed an open letter banning the development and use of autonomous weapons (for purposes of war.)



2015-2017: Google Deep Mind’s Alpha Go, a computer program that plays the board game Go, defeated various (human) champions.

2016: A Humanoid robot named Sophia  is created by Hanson Robotics. She is known as the first “robot citizen.” What distinguishes Sophia from previous humanoids is her likeness to an actual human being, with her ability to see (Image recognisation), make facial expressions, and communicate through AI.



2016: Google released Google Home, a smart speaker that uses AI to act as a “personal assistant” to help users remember tasks, create appointments, and search for information by voice.



2017: The Facebook Artificial Intelligence Research lab trained two “dialog agents” (chatbots) to communicate with each other in order to learn how to negotiate. However, as the chatbots conversed, they diverged from human language (programmed in English) and invented their own language to communicate with one another – exhibiting artificial intelligence to a great degree.



2018: Alibaba (Chinese tech group) language processing AI outscored human intellect at a Stanford reading and comprehension test. The Alibaba language processing scored “82.44 against 82.30 on a set of 100,000 questions” – a narrow defeat, but a defeat nonetheless.



2018: Google developed BERT, the first “bidirectional, unsupervised language representation that can be used on a variety of natural language tasks using transfer learning.”

2018: Samsung introduced Bixby, a virtual assistant. Bixby’s functions include Voice, where the user can speak to and ask questions, recommendations, and suggestions; Vision, where Bixby’s “seeing” ability is built into the camera app and can see what the user sees (i.e. object identification, search, purchase, translation, landmark recognition); and Home, where Bixby uses app-based information to help utilize and interact with the user (e.g. weather and fitness applications.)

What to expect for AI in 2019 and beyond?

Artificial intelligence advancements are occurring at an unprecedented rate. That being said, we can expect that the trends from the past decade will continue swinging upward in the coming year. A few things to keep our eyes on in 2019 include:



Chatbots+ virtual assistants: Strengthened chatbot and virtual assistant automation for heightened user experience

Natural Language Processing(NLP): Increased NLP abilities for artificially intelligent apps, including (and especially for) chatbots and virtual assistants.



Machine Learning and Automated Machine Learning: ML will shift toward Auto ML algorithms to allow developers and programmers to solve problems without creating specific models

Autonomous vehicles: Despite some bad press surrounding various faulty self-driving vehicles, it’s safe to assume there will be a stronger push to automate the process of driving product from point A to point B to 1. Save on the cost of human labor, 2. Optimize the process of purchase-shipment-arrival to consumer via self-driving vehicles that – in essence – won’t get tired behind the wheel

Our goal? Keeping pace with advancements in AI

In order to keep up with the world of tech, we have to keep pace with innovations in artificial intelligence. From humanoid robots like Sophia to home speaker assistants like Alexa, AI is advancing at an accelerated rate. Someday, humans will have artificially intelligent companions beyond toys like AIBO or Furby; someday, AI and humankind might coexist in a fashion where humans and humanoids are indistinguishable from one another.



Artificial Intelligence is an umbrella that contains other realms like image processing, cognitive science, neural networks.

The word Artificial Intelligence comprises of two words “Artificial” and “Intelligence”. Artificial refers to something which is made by human or non natural thing and Intelligence means ability to understand or think. There is a misconception that Artificial Intelligence is a system, but it is not a system .AI is implemented in the system.

Definition: AI, one definition can be “It is the study of how to train the computers so that computers can do things which at present human can do better. Therefore It is a intelligence where we want to add all the capabilities to machine that human contain.

Task Domains of Artificial Intelligence:

Intelligent Agent:

An agent is anything that can perceive its environment through sensors and acts upon that Environment through effectors.

·        A human agent has sensory organs such as eyes, ears, nose, tongue and skin parallel to the sensors, and other organs such as hands, legs, mouth, for Effectors.

·        A robotic agent replaces cameras and infrared range finders for the sensors, and various motors and actuators for effectors.

·        A software agent has encoded bit strings as its programs and actions.

Agent Terminology

·        Performance Measure of Agent − It is the criteria, which determines how successful an agent is.

·        Behaviour of Agent − It is the action that agent performs after any given sequence of percepts.

·        Percept − It is agent’s perceptual inputs at a given instance.

·        Percept Sequence − It is the history of all an agent has perceived till date.

Fig: Agent and Environment

Rationality:

Rationality is the  status of being reasonable, sensible, and having good sense of judgment.



Rationality is concerned with expected actions and results depending upon what the agent has perceived. Performing actions with the aim of obtaining useful information is an important part of rationality.

Rationality of an agent depends on the following −

·         The performance measures, which determine the degree of success.

·         Agent’s Percept Sequence till now.

·         The agent’s prior knowledge about the environment.

·         The actions that the agent can carry out.

·         Specifying the task environment:

·         PEAS(Performance, Environment, Actuators, And Sensors)

Types of Intelligent Agents:

The Structure of Intelligent Agents

Agent’s structure can be viewed as

• Agent = Architecture + Agent Program
• Architecture = the machinery that an agent executes on.
• Agent Program = an implementation of an agent function.

Simple Reflex Agents

The simplest kind of agent is the simple SIMPLE REFLEX reflex agent.

These agents select actions on the basis of the current percept, ignoring the rest of the percept history.

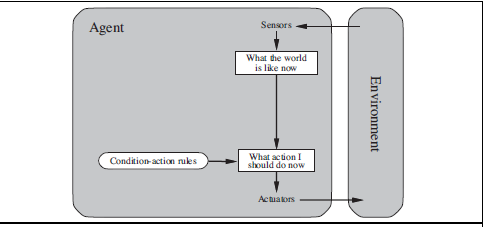

FIG: Simple Reflex Agent

Simple reflex agents have the admirable property of being simple, but they turn out to be

of limited intelligence.

• They choose actions only based on the current percept.
• They are rational only if a correct decision is made only on the basis of current precept.
• Their environment is completely observable.

Condition-Action Rule − It is a rule that maps a state (condition) to an action.

function SIMPLE-REFLEX-AGENT (percept ) returns an action

persistent: rules, a set of condition–action rules

state←INTERPRET-INPUT(percept )

rule←RULE-MATCH(state, rules)

action ←rule.ACTION

return action.

A simple reflex agent. It acts according to a rule whose condition matches

the current state, as defined by the percept.

Model Based Reflex Agents

They use a model of the world to choose their actions. They maintain an internal state.

Model − knowledge about “how the things happen in the world”.

Internal State − It is a representation of unobserved aspects of current state depending on percept history.

Fig: A model-based reflex agent. It keeps track of the current state of the world,

using an internal model. It then chooses an action in the same way as the reflex agent.

Updating the state requires the information about −

• How the world evolves.
• How the agent’s actions affect the world.

Goal Based Agents

They choose their actions in order to achieve goals. Goal-based approach is more flexible than reflex agent since the knowledge supporting a decision is explicitly modeled, thereby allowing for modifications.

Sometimes goal-based action selection is straightforward—for example, when goal satisfaction

results immediately from a single action. Sometimes it will be more tricky—for

example, when the agent has to consider long sequences of twists and turns in order to find a

 way to achieve the goal.

goal-based action selection is straightforward,

Goal − It is the description of desirable situations.

Goal − It is the description of desirable situations.

Utility Based Agents

Goals alone are not enough to generate high-quality behavior in most environments.

They choose actions based on a preference (utility) for each state.

Goals are inadequate when −

·     There are conflicting goals, out of which only few can be achieved.

·      Goals have some uncertainty of being achieved and one can need to weigh likelihood of success against the importance of a goal.

A model-based, utility-based agent. It uses a model of the world, along with

a utility function that measures its preferences among states of the world. Then it chooses the

action that leads to the best expected utility, where expected utility is computed by averaging

over all possible outcome states, weighted by the probability of the outcome.

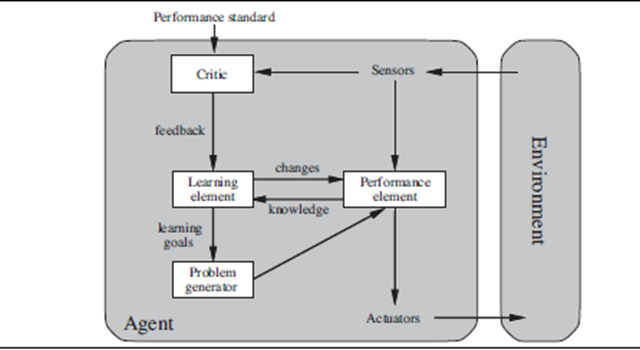

Learning Agents:

A learning agent can be divided into four conceptual components The most important distinction is between LEARNING ELEMENT the learning element, which is responsible for making improvements, and the performance element, which is responsible for selecting external actions. The performance element is what we have previously considered to be the entire agent: it takes in percepts and decides on actions. The design of the learning element depends very much on the design of the performance

element. The critic tells the learning element how well the agent is doing with respect to a fixed

performance standard. The critic is necessary because the percepts themselves provide no

indication of the agent’s success.

The Nature of Environments

Some programs operate in the entirely artificial environment confined to keyboard input, database, computer file systems and character output on a screen.

In contrast, some software agents (software robots or soft bots) exist in rich, unlimited soft bots domains. The simulator has a very detailed, complex environment. The software agent needs to choose from a long array of actions in real time. A soft bot designed to scan the online preferences of the customer and show interesting items to the customer works in the real as well as an artificial environment.

The most famous artificial environment is the Turing Test environment, in which one real and other artificial agents are tested on equal ground. This is a very challenging environment as it is highly difficult for a software agent to perform as well as a human.

Turing Test

The success of an intelligent behavior of a system can be measured with Turing Test.

Two persons and a machine to be evaluated participate in the test. Out of the two persons, one plays the role of the tester. Each of them sits in different rooms. The tester is unaware of who is machine and who is a human. He interrogates the questions by typing and sending them to both intelligence, to which he receives typed responses.

This test aims at fooling the tester. If the tester fails to determine machine’s response from the human response, then the machine is said to be intelligent.

Properties of Environment

The environment has multi fold properties −

 Discrete / Continuous − If there are a limited number of distinct, clearly defined, states of the environment, the environment is discrete (For example, chess); otherwise it is continuous (For example, driving).

Observable / Partially Observable − If it is possible to determine the complete state of the environment at each time point from the percepts it is observable; otherwise it is only partially observable.

Static / Dynamic − If the environment does not change while an agent is acting, then it is static; otherwise it is dynamic.

Single agent / Multiple agents − The environment may contain other agents which may be of the same or different kind as that of the agent.

Accessible / Inaccessible − If the agent’s sensory apparatus can have access to the complete state of the environment, then the environment is accessible to that agent.

Deterministic / Non-deterministic − If the next state of the environment is completely determined by the current state and the actions of the agent, then the environment is deterministic; otherwise it is non-deterministic.

Episodic / Non-episodic − In an episodic environment, each episode consists of the agent perceiving and then acting. The quality of its action depends just on the episode itself. Subsequent episodes do not depend on the actions in the previous episodes. Episodic environments are much simpler because the agent does not need to think ahead.

Problem Space and Search:

A problem can be defined formally by Five components:

1.The initial state

 2. Formulating problems

3.Actions

4. Transition Models

5. Goal State

function SIMPLE-PROBLEM-SOLVING-AGENT(percept ) returns an action

persistent: seq, an action sequence, initially empty

state, some description of the current world state

goal , a goal, initially null

problem, a problem formulation

state←UPDATE-STATE(state, percept )

if seq is empty then

goal ←FORMULATE-GOAL(state)

problem ←FORMULATE-PROBLEM (state, goal )

seq ←SEARCH(problem)

if seq = failure then return a null action

action ←FIRST(seq)

seq ←REST(seq)

return action

A simple problem-solving agent. It first formulates a goal and a problem,

searches for a sequence of actions that would solve the problem, and then executes the actions

one at a time. When this is complete, it formulates another goal and starts over.

Measuring problem-solving performance:

We can evaluate an algorithm’s performance in four ways:

Completeness: Is the algorithm guaranteed to find a solution when there is one?

Optimality :  The strategy to find the optimal solution

Time complexity: How long does it take to find a solution?

Space complexity: How much memory is needed to perform the search?

The Factors that need to be defined for formulation of a problem.

Initial State : The state in which the agent starts or initial condition of the agent.

States : All states that are reachable from initial state by any sequence of actions or all possible states that the agent can take. This is also referred to as State space.

Actions : All possible actions that the agent can execute. Specifically, it provides the list of actions, that an agent can perform in a particular state. This is also referred to as Action space.

Transition Model : This property describes the results of each action taken in a particular state.

Goal Test : A way to check, whether a state is the goal.

Path Cost : A function that assigns a numeric cost to a path w.r.t. performance measure.

Types of Search : There are two types of searches

1.Uninformed Search , 2. Informed Search.

Uninformed/Blind Search:

The uninformed search does not contain any domain knowledge such as closeness, the location of the goal. It operates in a brute-force way as it only includes information about how to traverse the tree and how to identify leaf and goal nodes. Uninformed search applies a way in which search tree is searched without any information about the search space like initial state operators and test for the goal, so it is also called blind search. It examines each node of the tree until it achieves the goal node.

It can be divided into five main types:

• Breadth-first search
• Uniform cost search
• Depth-first search
• Iterative deepening depth-first search

Bidirectional Search

Informed Search

Informed search algorithms use domain knowledge. In an informed search, problem information is available which can guide the search. Informed search strategies can find a solution more efficiently than an uninformed search strategy. Informed search is also called a Heuristic search.

A heuristic is a way which might not always be guaranteed for best solutions but guaranteed to find a good solution in reasonable time.

Informed search can solve much complex problem which could not be solved in another way.

An example of informed search algorithms is a traveling salesman problem.

1. Greedy Search
2. A* Search

1. Breadth-first Search:

• Breadth-first search is the most common search strategy for traversing a tree or graph. This algorithm searches breadth wise in a tree or graph, so it is called breadth-first search.
• BFS algorithm starts searching from the root node of the tree and expands all successor nodes at the current level before moving to nodes of next level.
• The breadth-first search algorithm is an example of a general-graph search algorithm.
• Breadth-first search implemented using FIFO queue data structure.

Advantages:

• BFS will provide a solution if any solution exists.
• If there are more than one solutions for a given problem, then BFS will provide the minimal solution which requires the least number of steps.

Disadvantages:

• It requires lots of memory since each level of the tree must be saved into memory to expand the next level.
• BFS needs lots of time if the solution is far away from the root node.

Example:

In the below tree structure, we have shown the traversing of the tree using BFS algorithm from the root node S to goal node K. BFS search algorithm traverse in layers, so it will follow the path which is shown by the dotted arrow, and the traversed path will be:

S---> A--->B---->C--->D---->G--->H--->E---->F---->I---->K

 Depth-first Search

o         Depth-first search isa recursive algorithm for traversing a tree or graph data structure.

o        It is called the depth-first search because it starts from the root node and follows each   path to its greatest depth node before moving to the next path.

o         DFS uses a stack data structure for its implementation.

o         The process of the DFS algorithm is similar to the BFS algorithm.

Advantage:

• DFS requires very less memory as it only needs to store a stack of the nodes on the path from root node to the current node.
• It takes less time to reach to the goal node than BFS algorithm (if it traverses in the right path).

Disadvantage:

• There is the possibility that many states keep re-occurring, and there is no guarantee of finding the solution.
• DFS algorithm goes for deep down searching and sometime it may go to the infinite loop.

Example:

In the below search tree, we have shown the flow of depth-first search, and it will follow the order as:

Root node--->Left node ----> right node.

It will start searching from root node S, and traverse A, then B, then D and E, after traversing E, it will backtrack the tree as E has no other successor and still goal node is not found. After backtracking it will traverse node C and then G, and here it will terminate as it found goal node.

Completeness: DFS search algorithm is complete within finite state space as it will expand every node within a limited search tree.

Time Complexity: Time complexity of DFS will be equivalent to the node traversed by the algorithm. It is given by:

T(n)= 1+ n²+ n³ +...…+ n^m=O(n^m)

Where, m= maximum depth of any node and this can be much larger than d (Shallowest solution depth)

Space Complexity: DFS algorithm needs to store only single path from the root node, hence space complexity of DFS is equivalent to the size of the fringe set, which is O(bm).

Optimal: DFS search algorithm is non-optimal, as it may generate a large number of steps or high cost to reach to the goal node.



Informed Search Algorithms

The informed search algorithm is more useful for large search space. Informed search algorithm uses the idea of heuristic, so it is also called Heuristic search.

Heuristics function: Heuristic is a function which is used in Informed Search, and it finds the most promising path. It takes the current state of the agent as its input and produces the estimation of how close agent is from the goal. The heuristic method, however, might not always give the best solution, but it guaranteed to find a good solution in reasonable time. Heuristic function estimates how close a state is to the goal. It is represented by h(n), and it calculates the cost of an optimal path between the pair of states. The value of the heuristic function is always positive.

h(n) <= h*(n)

Here h(n) is heuristic cost, and h*(n) is the estimated cost. Hence heuristic cost should be less than or equal to the estimated cost.

Pure Heuristic Search:

Pure heuristic search is the simplest form of heuristic search algorithms. It expands nodes based on their heuristic value h(n). It maintains two lists, OPEN and CLOSED list. In the CLOSED list, it places those nodes which have already expanded and in the OPEN list, it places nodes which have yet not been expanded.On each iteration, each node n with the lowest heuristic value is expanded and generates all its successors and n is placed to the closed list. The algorithm continues unit a goal state is found.

In the informed search we will discuss two main algorithms which are given below:

• Best First Search Algorithm(Greedy search)
• A* Search Algorithm

Best-first Search Algorithm (Greedy Search):

Greedy best-first search algorithm always selects the path which appears best at that moment. It is the combination of depth-first search and breadth-first search algorithms. It uses the heuristic function and search. Best-first search allows us to take the advantages of both algorithms. With the help of best-first search, at each step, we can choose the most promising node. In the best first search algorithm, we expand the node which is closest to the goal node and the closest cost is estimated by heuristic function, i.e.

f(n)= g(n).

Were, h(n)= estimated cost from node n to the goal.

The greedy best first algorithm is implemented by the priority queue.

Best first search algorithm:

• Step 1: Place the starting node into the OPEN list.
• Step 2: If the OPEN list is empty, Stop and return failure.
• Step 3: Remove the node n, from the OPEN list which has the lowest value of h(n), and places it in the CLOSED list.
• Step 4: Expand the node n, and generate the successors of node n.
• Step 5: Check each successor of node n, and find whether any node is a goal node or not. If any successor node is goal node, then return success and terminate the search, else proceed to Step 6.
• Step 6: For each successor node, algorithm checks for evaluation function f(n), and then check if the node has been in either OPEN or CLOSED list. If the node has not been in both list, then add it to the OPEN list.
• Step 7: Return to Step 2.

Advantages:

• Best first search can switch between BFS and DFS by gaining the advantages of both the algorithms.
• This algorithm is more efficient than BFS and DFS algorithms.

Disadvantages:

• It can behave as an unguided depth-first search in the worst case scenario.
• It can get stuck in a loop as DFS.
• This algorithm is not optimal.

Example: Consider the below search problem, and we will traverse it using greedy best-first search. At each iteration, each node is expanded using evaluation function f(n)=h(n) , which is given in the below table.

In this search example, we are using two lists which are OPEN and CLOSED Lists. Following are the iteration for traversing the above example.

Expand the nodes of S and put in the CLOSED list

Initialization: Open [A, B], Closed [S]

Iteration 1: Open [A], Closed [S, B]

Iteration 2: Open [E, F, A], Closed [S, B]

                  : Open [E, A], Closed [S, B, F]

Iteration 3: Open [I, G, E, A], Closed [S, B, F]

                  : Open [I, E, A], Closed [S, B, F, G]

Hence the final solution path will be: S----> B----->F----> G

Time Complexity: The worst case time complexity of Greedy best first search is O(b^m).

Space Complexity: The worst case space complexity of Greedy best first search is O(b^m). Where, m is the maximum depth of the search space.

Complete: Greedy best-first search is also incomplete, even if the given state space is finite.

Optimal: Greedy best first search algorithm is not optimal.

A* Search Algorithm:

A* search is the most commonly known form of best-first search. It uses heuristic function h(n), and cost to reach the node n from the start state g(n).

It has combined features of UCS and greedy best-first search, by which it solve the problem efficiently. A* search algorithm finds the shortest path through the search space using the heuristic function. This search algorithm expands less search tree and provides optimal result faster. A* algorithm is similar to UCS except that it uses g(n)+h(n) instead of g(n).

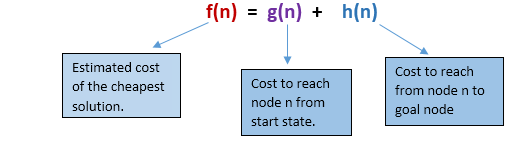

In A* search algorithm, we use search heuristic as well as the cost to reach the node. Hence we can combine both costs as following, and this sum is called as a fitness number.

Algorithm of A* search:

Step1: Place the starting node in the OPEN list.

Step 2: Check if the OPEN list is empty or not, if the list is empty then return failure and stops.

Step 3: Select the node from the OPEN list which has the smallest value of evaluation function (g+h), if node n is goal node then return success and stop, otherwise

Step 4: Expand node n and generate all of its successors, and put n into the closed list. For each successor n', check whether n' is already in the OPEN or CLOSED list, if not then compute evaluation function for n' and place into Open list.

Step 5: Else if node n' is already in OPEN and CLOSED, then it should be attached to the back pointer which reflects the lowest g(n') value.

Step 6: Return to Step 2.

Advantages:

• A* search algorithm is the best algorithm than other search algorithms.
• A* search algorithm is optimal and complete.
• This algorithm can solve very complex problems.

Disadvantages:

• It does not always produce the shortest path as it mostly based on heuristics and approximation.
• A* search algorithm has some complexity issues.
• The main drawback of A* is memory requirement as it keeps all generated nodes in the memory, so it is not practical for various large-scale problems.

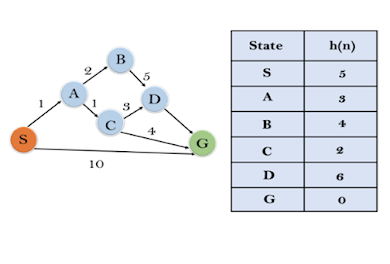

• Initialization: {(S, 5)}

  Iteration1: {(S--> A, 4), (S-->G, 10)}

  Iteration2: {(S--> A-->C, 4), (S--> A-->B, 7), (S-->G, 10)}

  Iteration3: {(S--> A-->C--->G, 6), (S--> A-->C--->D, 11), (S--> A-->B, 7), (S-->G, 10)}

• Iteration 4 will give the final result, as S--->A--->C--->G it provides the optimal path with cost 6.

  Points to remember:

  • A* algorithm returns the path which occurred first, and it does not search for all remaining paths.
  • The efficiency of A* algorithm depends on the quality of heuristic.
  • A* algorithm expands all nodes which satisfy the condition f(n)<="" li="">

  Complete: A* algorithm is complete as long as:

  • Branching factor is finite.
  • Cost at every action is fixed.

  Optimal: A* search algorithm is optimal if it follows below two conditions:

  • Admissible: the first condition requires for optimality is that h(n) should be an admissible heuristic for A* tree search. An admissible heuristic is optimistic in nature.
  • Consistency: Second required condition is consistency for only A* graph-search.

  If the heuristic function is admissible, then A* tree search will always find the least cost path.

  Time Complexity: The time complexity of A* search algorithm depends on heuristic function, and the number of nodes expanded is exponential to the depth of solution d. So the time complexity is O(b^d), where b is the branching factor.

  Space Complexity: The space complexity of A* search algorithm is O(b^d)

  Means-Ends Analysis in Artificial Intelligence

  • Means-Ends Analysis is problem-solving techniques used in Artificial intelligence for limiting search in AI programs.
  • It is a mixture of Backward and forward search technique.

  How means-ends analysis Works:

  The means-ends analysis process can be applied recursively for a problem. It is a strategy to control search in problem-solving. Following are the main Steps which describes the working of MEA technique for solving a problem.

  a.                   First, evaluate the difference between Initial State and final State.

  2. Select the various operators which can be applied for each difference.
  3. Apply the operator at each difference, which reduces the difference between the current state and goal state.

  Operator Sub goaling

  In the MEA process, we detect the differences between the current state and goal state. Once these differences occur, then we can apply an operator to reduce the differences. So we create the sub problem of the current state, in which operator can be applied, such type of backward chaining in which operators are selected, and then sub goals are set up to establish the preconditions of the operator is called Operator Subgoaling.

  Algorithm for Means-Ends Analysis:

  Let's we take Current state as CURRENT and Goal State as GOAL, then following are the steps for the MEA algorithm.

  • Step 1: Compare CURRENT to GOAL, if there are no differences between both then return Success and Exit.
  • Step 2: Else, select the most significant difference and reduce it by doing the following steps until the success or failure occurs.

  a.       Select a new operator O which is applicable for the current difference, and if there is no such operator, then signal failure.

• b.       Attempt to apply operator O to CURRENT. Make a description of two states

•            O-Start, a state in which O?s preconditions are satisfied.
•             O-Result, the state that would result if O were applied In O-start.

• c.       If
  (First-Part <------ MEA (CURRENT, O-START)
  And
  (LAST-Part <----- MEA (O-Result, GOAL), are successful, then signal Success and return the result of combining FIRST-PART, O, and LAST-PART

• Example of Mean-Ends Analysis:

  Let's take an example where we know the initial state and goal state as given below. In this problem, we need to get the goal state by finding differences between the initial state and goal state and applying operators.
